YHZM50 Cement Concrete Batch Plant 50m3 Concrete Mixing Plant Mobile Concrete Batching Plant With Drum
Product Description

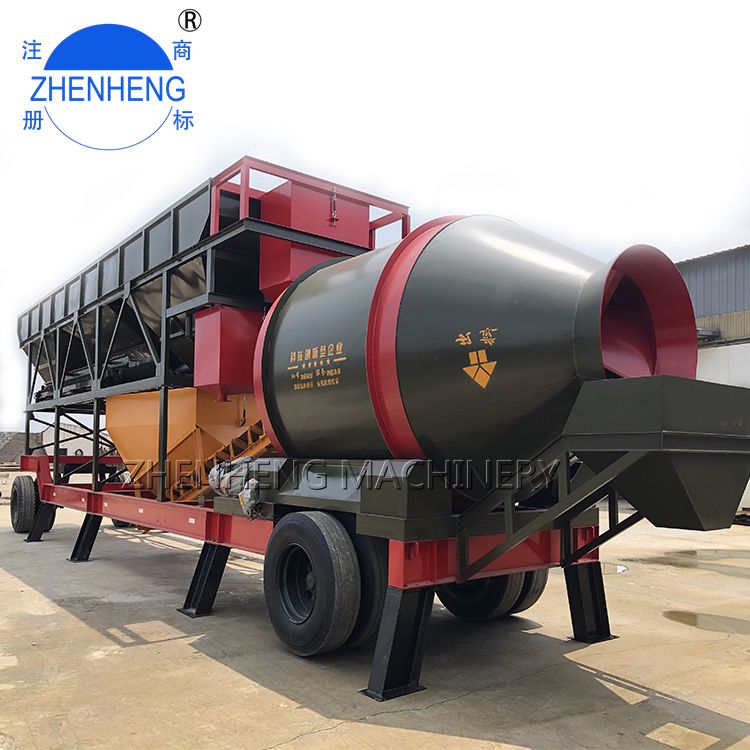

1) The drum mobile mixing plant is equipped with aggregate batching device and belt conveyor for transporting sand and stone aggregate.
2) The head and support of the belt conveyor are set up on the aggregate storage, and the pre-filling hopper of the aggregate (to store the mixed and weighed aggregate). They will be weighed according to the ratio of good aggregate conveyor discharge to the concrete mixer.
3) The mixer platform is equipped with a roller mixer, in the upper part is a variety of measuring devices, according to the proportion of cement, water, plasticizer and other dosages, after weighing, unloaded into the mixer, together with the weighing of the aggregate to be mixed, mixed concrete can be discharged directly into the concrete truck transport away.
Features:
1) Compact structure design, concentrates most of the mixing plant components on a trailer unit.
2) Humanized operation mode, stable and reliable work, stable operation in a variety of harsh environments.
3) Continuous operation, even mixing, strong and fast mixing movement.
4) A full set of equipment can be quickly transported to the construction site and assembled on site in the full hook form, and can be constructed without debugging.
Details:
1. JZM Concrete Mixer
Adopting the JZM concrete mixer. It can mix by rotating conversely and discharge by rotating reversely. Low noise, low power consumption, no pollution.

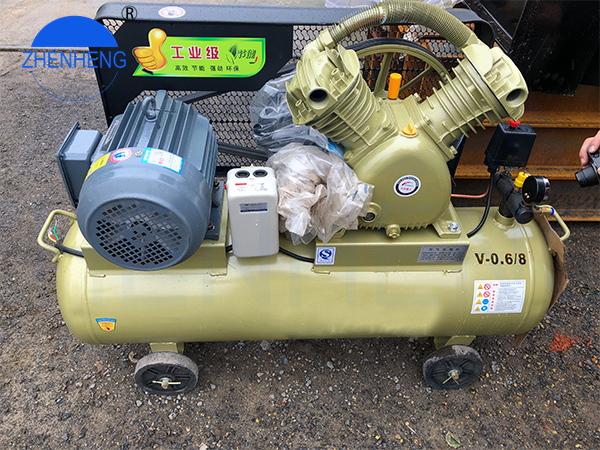

2. Pneumatic System
Its function is to open and close each aggregate silo, mixer discharge door, and cement scale discharge door in time according to the instructions issued by the control system, break the arch of the cement in the cement silo, blow and stir the additives, and ensure that various aggregates, cement , Accurate measurement of additives, and complete the loading task of finished materials.
2. Pneumatic System
Its function is to open and close each aggregate silo, mixer discharge door, and cement scale discharge door in time according to the instructions issued by the control system, break the arch of the cement in the cement silo, blow and stir the additives, and ensure that various aggregates, cement , Accurate measurement of additives, and complete the loading task of finished materials.
3. Small Cement Hopper
The cement powder in 50kg/100kg type or jumbo bag type can be transferred to mixer through cement hopper and screw conveyor. There is a blade inside the cement hopper, which can damage the bag, drop the material into the bottom, and send it to the mixer by screw conveyor.
4. Control System
1). Automatic and manual control are available.
2). Dynamic display of the production process.
3). Saving the data of production in computer, the printing of the daily, monthly and yearly reports of production.
4. Control System
1). Automatic and manual control are available.
2). Dynamic display of the production process.
3). Saving the data of production in computer, the printing of the daily, monthly and yearly reports of production.
Parameters
|
Model |
YHZM50 |
|
Productivity |
50m3/hr |
|
Mixer Type |
JZM1000 |
|
Discharge Volume |
1000L |
|
Aggregate Batch Machine |
6.5m3 * 3bins |
|
Maximum Aggregate Size |
40/60mm |
|
Unloading Height |
1.6m |
|
Screw Conveyor |
LSY219*8m |
|
Weighing Accuracy |
±1% |
|
Control System |
Fully Auto |
|
Cement Silo |
50T |
