Mobile Yhzm35 Concrete Batching Jzm750 Mixing Machine Concrete Batching Mixing Plant Installation For Sale
Product Description

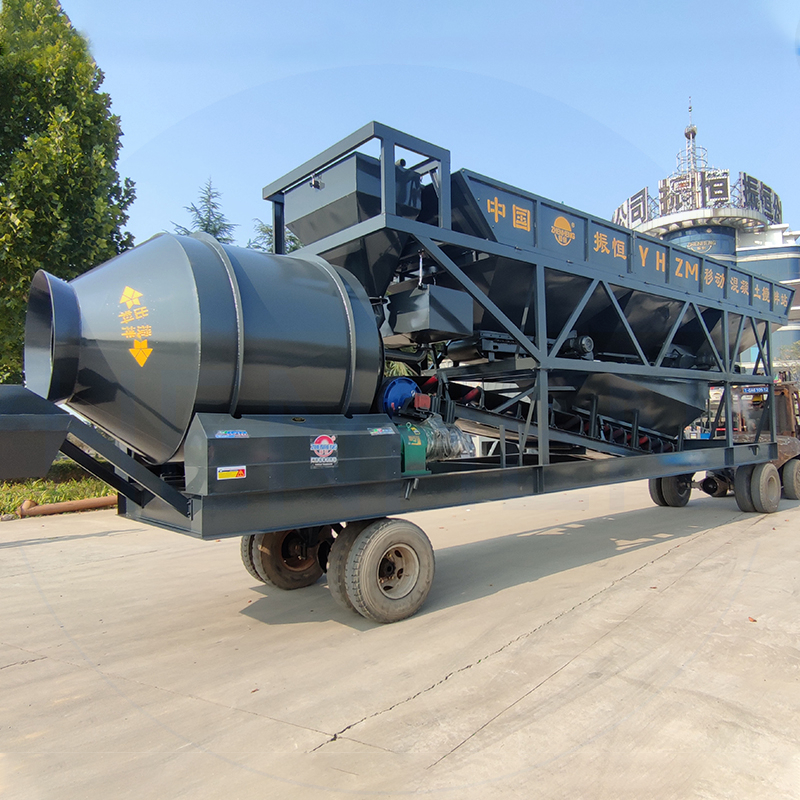

1) The drum mobile mixing plant is equipped with aggregate batching device and belt conveyor for transporting sand and stone aggregate.
2) The head and support of the belt conveyor are set up on the aggregate storage, and the pre-filling hopper of the aggregate (to store the mixed and weighed aggregate). They will be weighed according to the ratio of good aggregate conveyor discharge to the concrete mixer.
3) The mixer platform is equipped with a roller mixer, in the upper part is a variety of measuring devices, according to the proportion of cement, water, plasticizer and other dosages, after weighing, unloaded into the mixer, together with the weighing of the aggregate to be mixed, mixed concrete can be discharged directly into the concrete truck transport away.
Features:
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
Details:
1. JZM Concrete Mixer
Adopting the JZM concrete mixer. It can mix by rotating conversely and discharge by rotating reversely. Low noise, low power consumption, no pollution.

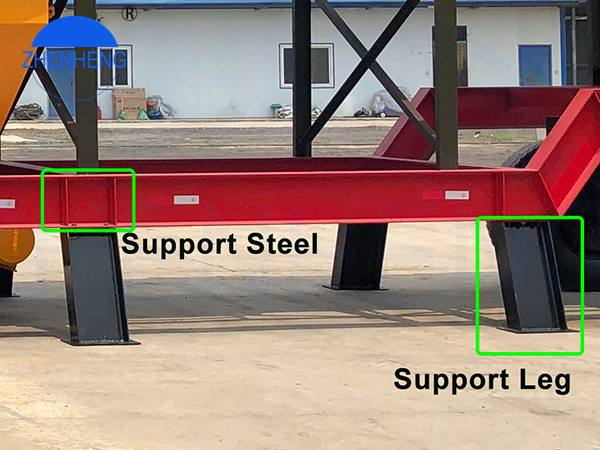

2. Support Leg & Support Steel
1. Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
2. Support Leg & Support Steel
1. Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
3. Small Cement Hopper
The cement powder in 50kg/100kg type or jumbo bag type can be transferred to mixer through cement hopper and screw conveyor. There is a blade inside the cement hopper, which can damage the bag, drop the material into the bottom, and send it to the mixer by screw conveyor.
4. Tires & Universal Steering Wheel
1. Double tires, strong pressure bearing capacity, strong stability, non-slip
4. Tires & Universal Steering Wheel
1. Double tires, strong pressure bearing capacity, strong stability, non-slip
Parameters
|
Model |
YHZM35 |
|
Productivity |
35m3/hr |
|
Mixer Type |
JZM750 |
|
Discharge Volume |
750L |
|
Aggregate Batch Machine |
5.5m3 * 3bins |
|
Maximum Aggregate Size |
40/60mm |
|
Unloading Height |
1.5m |
|
Screw Conveyor |
LSY219*6m |
|
Weighing Accuracy |
±1% |
|
Control System |
Fully Auto |
|
Cement Silo |
2m3 Hopper,50T |
