HZS180 180m3/h Commercial Concrete Industry Concrete Mixing Plant Ready Mix Concrete Batching Plant
Products Description

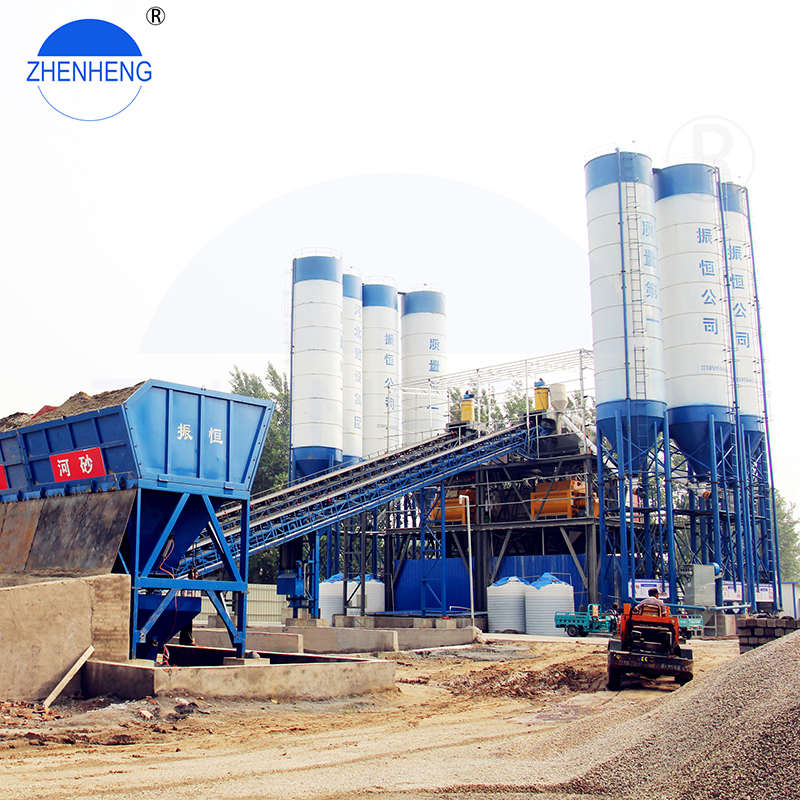

Stationary concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.
It is widely used large scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
Features
1. Short production cycle and large discharge volume, it’s suitable for commercial concrete batching plants.
2. The belt type concrete mixing station is high feeding and transportation efficiency.
It can quickly complete large-scale operation requirements, and improve production efficiency by more than 20%.
3. It can continuously provide feeding, and the transmission distance is relatively large, which can well meet the needs of large-scale mixing plants.
Detail
1.Transportation system
1) High feeding and transportation efficiency
2) Improve production efficiency by more than 20%
2.Mixing system
1) Adopt double spiral belt mixer, stable and reliable, easy to clean (only clean once a month).
2) Its excellent performance and productivity performance can save about 15% mixing time and 20% production energy consumption.
3) Scientific gate discharge hopper perfectly realizes efficient discharge without splash and drip.
2.Mixing system
1) Adopt double spiral belt mixer, stable and reliable, easy to clean (only clean once a month).
2) Its excellent performance and productivity performance can save about 15% mixing time and 20% production energy consumption.
3) Scientific gate discharge hopper perfectly realizes efficient discharge without splash and drip.

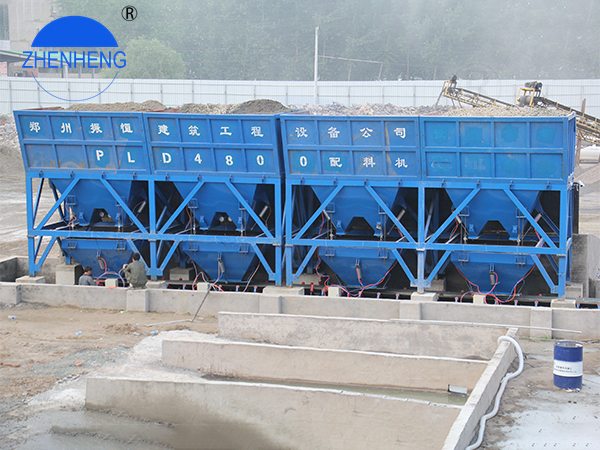

3. Batching system
The optimized vibration lining plate structure, together with the design of large-inclined-angle and eccentric-pin arch-breaking, plus the adjustable pressure reducing plate, can guarantee the unloading efficiency, stable performance, safe production, and comfortable use.
4. Control system
1) Self-developed dual-computer synchronous production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop;
2) Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.
4. Control system
1) Self-developed dual-computer synchronous production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop;
2) Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.
Parameters
|
Model |
HZS180 |
|
Productivity |
180m3/hr |
|
Mixer Type |
JS3000 |
|
Aggregate Number |
4 |
|
Maximum Aggregate Size |
60/80mm |
|
Unloading Height |
4.3m |
|
Aggregate weighing range |
0-6000kg |
|
Cement weighing range |
0-1800kg |
|
Water weighing range |
0-900kg |
|
Additive weighing range |
0-100kg |
|
Fly ash weighing range |
0-900kg |
|
Dimension |
53.8*25.4*12m |
|
Cement Silo |
200T |
