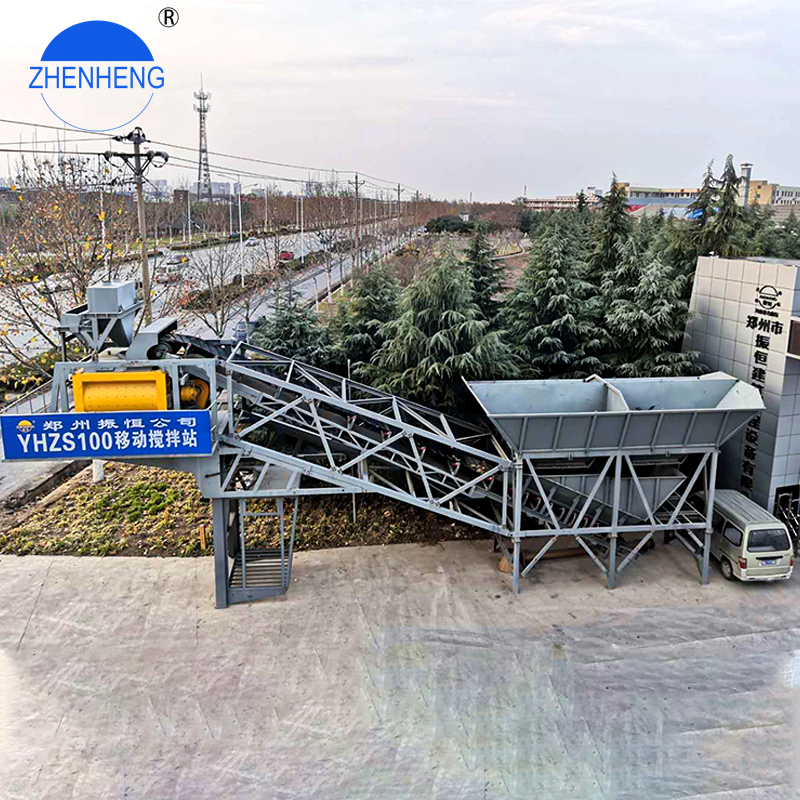

China Henan Zhenheng YHZS100 Wet Mix Mobile Concrete Batching Plant Concrete Mixing Plant For Sale
Product Description
Mobile concrete mixing station is a trailer unit of concrete production equipment of material storage, and weighing, and conveying, and mixing, and unloading materials and full control system overall concentrated; It has characteristic of mobile flexible, and disassembly quick simple, and store management simple; It suits public railway, and bridge, and port, and hydropower, engineering mobile construction.
Features:
1) Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform;
2) The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts;
3) Mixing paddles, arms and blades are made of special high chromiumand high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machine's durability and reliability;
4) The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
5) Decelerating system uses high-speed, synchronized, and closed planetary decelerators;
6) The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Details:

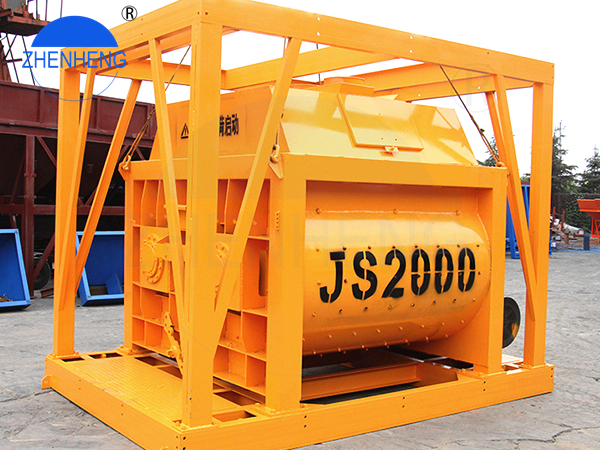

1. JS Concrete Mixer
1) Twin-shaft mixer is equipped with antomatic multi pumps lubrication system supplying grease to the four mixing shaft seals. There are virtually no grease distributor maintenance troubles, and working reliability is thus improved.
2) The gearbox, discharge pump, oil level and temperature at reducer, hydraulic door opening and anto lubrication system are all under monitoring, so as to ensure normal working status.
2. Weighing System
1) To make aggregate supplying smoother, a specific anti-block structure is adopted, ramping up the batching efficiency.
2) Belt scales are mounted to ensure better accuracy through automatic compensation and inching discharge
3) High dynamic accuracy measurement can be achieved thanks to the PC control, which not only helps realize fast calculating but makes the aggregate feeding process fully controllable when combined with the meter.
2. Weighing System
1) To make aggregate supplying smoother, a specific anti-block structure is adopted, ramping up the batching efficiency.
2) Belt scales are mounted to ensure better accuracy through automatic compensation and inching discharge
3) High dynamic accuracy measurement can be achieved thanks to the PC control, which not only helps realize fast calculating but makes the aggregate feeding process fully controllable when combined with the meter.
3. Cement Silo
Zhenheng adopts strong and thick cement silo which is split type, thus can largely save seafreight and it is easy to assembly at installationsite abroad.There is level meter in the cement silo, indicating the cement level; the arc-breaking system guarantee the discharging fluently.
4. Belt Conveyor
1) High feeding and transportation efficiency
2) Improve production efficiency by more than 20%
4. Belt Conveyor
1) High feeding and transportation efficiency
2) Improve production efficiency by more than 20%
5. Fully Auto Control System
1) Renowned-brand industrial computer and top-rated main electrical components enable the control to be more intelligent and more stable.
2) Batching process displayed based on real-time data can be adjusted whenever necessary online. Coarse and fine aggregate batching adopts double speed courses, together with automatic compensation, providing higher accuracy.
3) Two control modes-fully automatic and manual are available to switch at any time, and the whole operation becomes so easy. Plus, various safety protections help make the ease of maintenance and troubleshooting.
Parameters
|
Model |
YHZS100 |
|
Productivity |
100m3/hr |
|
Mixer Type |
JS2000 |
|
Discharge Volume |
2000L |
|
Aggregate Batch Machine |
10m3* 3bins |
|
Unloading Height |
3.8m |
|
Weighing Accuracy |
±1% |
|
Weighing System |
water, cement, additive |
|
Power |
120kw |
|
Control System |
Fully Auto |
|
Cement Silo |
70T*2 |
|
Screw Conveyor |
LSY219*12m*2 |
